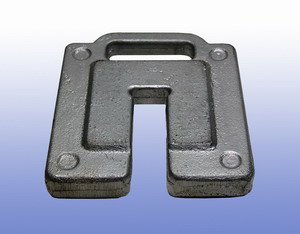

Cast Iron Counterweight, Iron Block Casting for Crane



Product Name:

Cast Iron Counter Weight, Iron Balancing Weight, Cast Iron Block Casting, Clump Weight for Crane

Application on:
A counterweight is an equivalent counterbalancing weight that balances a load. Its purpose is to make lifting the load more efficient, which saves energy and is less taxing on the lifting machine.

Counterweights are often used in traction lifts (elevators), cranes and funfair rides. In these applications, the expected load multiplied by the distance that load will be spaced from the central support (called the "tipping point") must be equal to the counterweight's mass times its distance from the tipping point in order to prevent over-balancing either side. This distance times mass is called the load moment.

Material Grades:
Cast Iron, Gray Cast Iron, Ductile Cast Iron, S.G. Iron, Grey Iron

Gray Cast Iron
ISO185 100 150 200 250 300
ASTM A48 NO.20 NO.25 NO.30 NO.35 NO.40 NO.45
DIN1691 GG10 GG15 GG20 GG25 GG30
EN1561 EN-GJL-100 EN-GJL-150 EN-GJL-200 EN-GJL-250 EN-GJL-300
BS1452 100 150 200 250 300
AS1830 T150 T220 T260 T300

Ductile Cast Iron
ISO1083 400-15 400-18 450-10 500-7 600-3 700-2
ASTM A536 60-40-18 60-42-10 65-45-12 70-50-05 80-55-06 80-60-03 100-70-03
DIN1693 GGG40 GGG50 GGG60 GGG70
EN1563 EN-GJS-400-15 EN-GJS-400-18 EN-GJS-450-10 EN-GJS-500-7 EN-GJS-600-3 EN-GJS-700-2
BS2789 400/17 420/12 500/7 600/7 700/2
AS1831 300-17 400-12 500-7 600-3 700-2

Production Process:
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting,

Supplier:
Cast Iron Foundry in China, Iron Casting Manufacturer, Iron Foundry, China Foundry

Dandong Foundry is producing cast iron and cast steel castings by various sand casting and precision casting processes, including Automatic Molding Line, Resin Sand Molding, Shell Molding, Manual Green Sand Cast Molding, Shell Molding, Lost Wax Investment Casting Process by water glass and silica sol materials.

We have complete quality inspection devices for Mechanical Testing and Chemical Analysis, including tensile strength, hardness, metallographic inspection, hardness, spectrometer, ultrasonic testing. ISO 9001 Certified. We can issue quality reports for all inspections.
