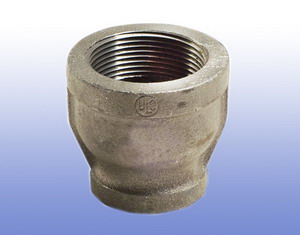

Cast Iron Pipe Fitting, Reducer Casting, Ductile Iron Reducing Pipe, Pipe Parts, Casting Factory in China
A reducer is the component in a pipeline that reduces the pipe size from a larger to a smaller bore (inner diameter).
The length of the reduction is usually equal to the average of the larger and smaller pipe diameters. There are two main types of reducer: concentric and eccentric reducers.
A reducer can be used either as nozzle or as diffuser depending on the mach number of the flow.
A reducer allows for a change in pipe size to meet hydraulic flow requirements of the system, or to adapt to existing piping of a different size. Reducers are usually concentric but eccentric reducers are used when required to maintain the same top-or bottom-of-pipe level.
These fittings are manufactured in inch and metric size.
Cast Iron, Gray Cast Iron, Ductile Cast Iron, S.G. Iron, Grey Iron
Gray Cast Iron
ISO185 100 150 200 250 300
ASTM A48 NO.20 NO.25 NO.30 NO.35 NO.40 NO.45
DIN1691 GG10 GG15 GG20 GG25 GG30
EN1561 EN-GJL-100 EN-GJL-150 EN-GJL-200 EN-GJL-250 EN-GJL-300
BS1452 100 150 200 250 300
AS1830 T150 T220 T260 T300
Ductile Cast Iron
ISO1083 400-15 400-18 450-10 500-7 600-3 700-2
ASTM A536 60-40-18 60-42-10 65-45-12 70-50-05 80-55-06 80-60-03 100-70-03
DIN1693 GGG40 GGG50 GGG60 GGG70
EN1563 EN-GJS-400-15 EN-GJS-400-18 EN-GJS-450-10 EN-GJS-500-7 EN-GJS-600-3 EN-GJS-700-2
BS2789 400/17 420/12 500/7 600/7 700/2
AS1831 300-17 400-12 500-7 600-3 700-2
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting,
Cast Iron Foundry in China, Iron Casting Manufacturer, Iron Foundry, China Foundry
Dandong Foundry is producing cast iron and cast steel castings by various sand casting and precision casting processes, including Automatic Molding Line, Resin Sand Molding, Shell Molding, Manual Green Sand Cast Molding, Shell Molding, Lost Wax Investment Casting Process by water glass and silica sol materials.
We have complete quality inspection devices for Mechanical Testing and Chemical Analysis, including tensile strength, hardness, metallographic inspection, hardness, spectrometer, ultrasonic testing. ISO 9001 Certified. We can issue quality reports for all inspections.
