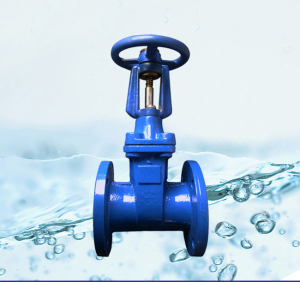

Cast Iron Resilient Stem Gate Valve



Basic Info.
Model NO.:Z41X
Connection Form: Flange
Material: Cast Iron
Seal Surface: Wedge Gate Valve
Thread Position of Valve Rod: Inside Gate Valve
Application: Water Industrial Usage
Color: Red, Blue, Black etc.
Size:1/2 Inch to 48 Inch
Export Markets: Global

Additional Info.

Packing: Plastic Bag Inside and Strong Plywood Case Outside
Standard: 2 inch to 48 inch
Origin: China
HS Code: 8481804090

Product Description

Cast iron Non-rising stem resilient soft seated gate valves

Body/Bonnet: Ductile iron GGG50/ cast iron GG25
Disc: Ductile iron with EPDM/NBR

1. Ductile Iron body and bonnet for high strength and impact resistance.
Valve body and bonnet fusion bonded epoxy coating for long life corrosion protection.
Straight through full bore to avoid debris traps, small flow resistance.

2. Ductile Iron wedge inside and outside fully rubberized with vulcanized EPDM or NBR, suitable for potable water.

3. Rubber bonnet gasket for longevity and protection of bonner bolts, Isolated fasteners for corrosion protection.

4. Stainless steel stem with rolling thread for high strength and corrosion resistance.

5. Back sealing facility to allow for replacement of seals under full operation pressure.

6. Dust guard to prevent impurities.

7. Valve is supplied with hand wheel or bare shaft with square cap; Small operation torque, easy opening and closing.
