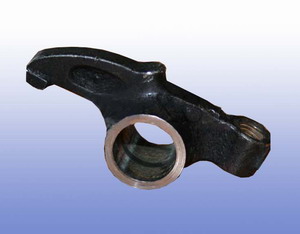

Cast Iron Rocking Arm Casting, Iron Foundry in China



Product Name:

Cast Iron Rocking Arm, Iron Casting for Traverse, Rocker Arm Casting, Cast Metal Swing Arm

Application on:
A rocker arm (in the context of an internal combustion engine of automotive, marine, motorcycle and reciprocating aviation types) is an oscillating lever that conveys radial movement from the cam lobe into linear movement at the poppet valve to open it. One end is raised and lowered by a rotating lobe of the camshaft (either directly or via a tappet (lifter) and pushrod) while the other end acts on the valve stem. When the camshaft lobe raises the outside of the arm, the inside presses down on the valve stem, opening the valve. When the outside of the arm is permitted to return due to the camshafts rotation, the inside rises, allowing the valve spring to close the valve.

Material Grades:
Cast Iron, Gray Cast Iron, Ductile Cast Iron, S.G. Iron, Grey Iron

Gray Cast Iron
ISO185 100 150 200 250 300
ASTM A48 NO.20 NO.25 NO.30 NO.35 NO.40 NO.45
DIN1691 GG10 GG15 GG20 GG25 GG30
EN1561 EN-GJL-100 EN-GJL-150 EN-GJL-200 EN-GJL-250 EN-GJL-300
BS1452 100 150 200 250 300
AS1830 T150 T220 T260 T300

Ductile Cast Iron
ISO1083 400-15 400-18 450-10 500-7 600-3 700-2
ASTM A536 60-40-18 60-42-10 65-45-12 70-50-05 80-55-06 80-60-03 100-70-03
DIN1693 GGG40 GGG50 GGG60 GGG70
EN1563 EN-GJS-400-15 EN-GJS-400-18 EN-GJS-450-10 EN-GJS-500-7 EN-GJS-600-3 EN-GJS-700-2
BS2789 400/17 420/12 500/7 600/7 700/2
AS1831 300-17 400-12 500-7 600-3 700-2

Production Process:
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting,

Supplier:
Cast Iron Foundry in China, Iron Casting Manufacturer, Iron Foundry, China Foundry

Dandong Foundry is a professional China Foundry with over 50 years experience in producing Iron Castings, Steel Castings and Machining Works. Our main production materials are gray cast iron, ductile cast iron, carbon steel and alloy steel.

We are ISO 9001 Quality Certified. Annual output 8000 tons of metal castings, and 70% have been exported to USA, UK, Australia, Germany and Italy etc.
