Product Name:

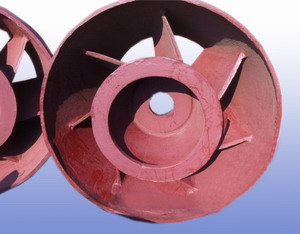

Cast Iron Guide Blade, Nodular Cast Iron Vane, Gray Iron Casting, Countervane Casting in China Foundry
Sand Casting – When to use it:
•Shaped or non-symmetrical parts
•Large parts
•Components with internal structures
•More liberal tolerances
Material Grades:
Cast Iron, Gray Cast Iron, Ductile Cast Iron, S.G. Iron, Grey Iron
Gray Cast Iron
Country |
Standard |
Equivalent Grades of Gray Iron (Grey Cast Iron) |
ISO |
ISO 185 |
100 |
150 |
200 |
250 |
300 |
350 |
— |
China |
GB 9439 |
HT100 |
HT150 |
HT200 |
HT250 |
HT300 |
HT350 |
— |
USA |
ASTM A48 |
— |
NO.20 |
NO.30 |
NO.35 |
NO.40 |
NO.50 |
NO.55 |
NO.25 |
NO.45 |
NO.60 |
Germany |
DIN 1691 |
GG10 |
GG15 |
GG20 |
GG25 |
GG30 |
GG35 |
GG40 |
Austria |
European |
EN 1561 |
EN-GJL-100 |
EN-GJL-150 |
EN-GJL-200 |
EN-GJL-250 |
EN-GJL-300 |
EN-GJL-350 |
|
Japan |
JIS G5501 |
FC100 |
FC150 |
FC200 |
FC250 |
FC300 |
FC350 |
— |
Italy |
UNI 5007 |
G10 |
G15 |
G20 |
G25 |
G30 |
G35 |
— |
France |
NF A32-101 |
— |
FGL150 |
FGL200 |
FGL250 |
FGL300 |
FGL350 |
FGL400 |
UK |
BS 1452 |
100 |
150 |
200 |
250 |
300 |
350 |
— |
India |
IS 210 |
— |
FG150 |
FG200 |
FG260 |
FG300 |
FG350 |
FG400 |
Spain |
UNF |
— |
FG15 |
FG20 |
FG25 |
FG30 |
FG35 |
— |
Belgium |
NBN 830-01 |
FGG10 |
FGG15 |
FGG20 |
FGG25 |
FGG30 |
FGG35 |
FGG40 |
Australia |
AS 1830 |
— |
T150 |
T220 |
T260 |
T300 |
T350 |
T400 |
Sweden |
SS 14 01 |
O110 |
O115 |
O120 |
O125 |
O130 |
O135 |
O140 |
Norway |
NS11 100 |
SJG100 |
SJG150 |
SJG200 |
SJG250 |
SJG300 |
SJG350 |
— |
Ductile Cast Iron
Country |
Standard |
Equivalent Grades of Ductile iron (SG Iron, Nodular Graphite Iron) |
ISO |
ISO 1083 |
400-15 |
450-10 |
500-7 |
600-3 |
700-2 |
800-2 |
900-2 |
400-18 |
China |
GB 1348 |
QT400-18 |
QT450-10 |
QT500-7 |
QT600-3 |
QT700-2 |
QT800-2 |
QT900-2 |
USA |
ASTM A536 |
60-40-18 |
60-42-10 |
70-50-05 |
80-55-06 |
100-70-03 |
120-90-02 |
— |
65-45-12 |
80-60-03 |
Germany |
DIN 1693 |
GGG40 |
— |
GGG50 |
GGG60 |
GGG70 |
GGG80 |
— |
Austria |
European |
EN 1563 |
EN-GJS-400-15 |
EN-GJS-450-10 |
EN-GJS-500-7 |
EN-GJS-600-3 |
EN-GJS-700-2 |
EN-GJS-800-2 |
EN-GJS-900-2 |
EN-GJS-400-18 |
Japan |
JIS G5502 |
FCD400 |
FCD450 |
FCD500 |
FCD600 |
FCD700 |
FCD800 |
— |
Italy |
UNI 4544 |
GS370-17 |
GS400-12 |
GS500-7 |
GS600-2 |
GS700-2 |
GS800-2 |
— |
France |
NF A32-201 |
FGS370-17 |
FGS400-12 |
FGS500-7 |
FGS600-2 |
FGS700-2 |
FGS800-2 |
— |
UK |
BS 2789 |
400/17 |
420/12 |
500/7 |
600/7 |
700/2 |
800/2 |
900/2 |
India |
IS 1865 |
SG370/17 |
SG400/12 |
SG500/7 |
SG600/3 |
SG700/2 |
SG800/2 |
— |
Spain |
UNF |
FGE38-17 |
FGE42-12 |
FGE50-7 |
FGE60-2 |
FGE70-2 |
FGE80-2 |
— |
Belgium |
NBN 830-02 |
FNG38-17 |
FNG42-12 |
FNG50-7 |
FNG60-2 |
FNG70-2 |
FNG80-2 |
— |
Australia |
AS 1831 |
300-17 |
— |
500-7 |
600-3 |
700-2 |
800-2 |
— |
400-12 |
Sweden |
SS 14 07 |
0717-02 |
— |
0727-02 |
0732-03 |
0737-01 |
0864-03 |
— |
Norway |
NS11 301 |
SJK-400.3 |
— |
SJK-500 |
SJK-600 |
SJK-700 |
SJK-800 |
|
SJK-400 |
Production Process:
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting,
Supplier:
Cast Iron Foundry in China, Iron Casting Manufacturer, Iron Foundry, China Foundry
Dandong Foundry is producing cast iron and cast steel castings by various sand casting and precision casting processes, including Automatic Molding Line, Resin Sand Molding, Shell Molding, Manual Green Sand Cast Molding, Shell Molding, Lost Wax Investment Casting Process by water glass and silica sol materials.
We have complete quality inspection devices for Mechanical Testing and Chemical Analysis, including tensile strength, hardness, metallographic inspection, hardness, spectrometer, ultrasonic testing. ISO 9001 Certified. We can issue quality reports for all inspections.
|
