Product Name:

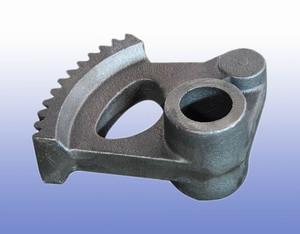

Ductile Iron Castings, S.G. Iron Machined Parts, Precision Castings, Nodular Cast Iron Machinery Parts

Ductile Cast Iron Properties:
Ductile iron can be alloyed with small amounts of copper to produce increasingly stronger irons as the copper levels are increased. These copper alloyed ductile irons can also be heat treated, being particularly suited to induction and flame hardening. With the addition of nickel up to 30% and chrome at smaller levels a range of austenitic ductile irons can be produced which have improved properties at elevated temperatures and in aggressive atmospheres and environments.
One area of potential confusion is the number of ways ductile iron is described. All of the following are used and are interchangeable – Ductile Iron, Ductile Cast Iron, SG, SG Iron, Spheroidal Graphite and Spheroidal Graphite Cast Iron.
Material Grades:
Ductile Cast Iron, Nodular Cast Iron, Spheroidal Graphite Iron, Spherulitic Graphite Cast Iron, SG Iron
Country |
Standard |
Equivalent Grades of Ductile iron (SG Iron, Nodular Graphite Iron) |
ISO |
ISO 1083 |
400-15 |
450-10 |
500-7 |
600-3 |
700-2 |
800-2 |
900-2 |
400-18 |
China |
GB 1348 |
QT400-18 |
QT450-10 |
QT500-7 |
QT600-3 |
QT700-2 |
QT800-2 |
QT900-2 |
USA |
ASTM A536 |
60-40-18 |
60-42-10 |
70-50-05 |
80-55-06 |
100-70-03 |
120-90-02 |
— |
65-45-12 |
80-60-03 |
Germany |
DIN 1693 |
GGG40 |
— |
GGG50 |
GGG60 |
GGG70 |
GGG80 |
— |
Austria |
European |
EN 1563 |
EN-GJS-400-15 |
EN-GJS-450-10 |
EN-GJS-500-7 |
EN-GJS-600-3 |
EN-GJS-700-2 |
EN-GJS-800-2 |
EN-GJS-900-2 |
EN-GJS-400-18 |
Japan |
JIS G5502 |
FCD400 |
FCD450 |
FCD500 |
FCD600 |
FCD700 |
FCD800 |
— |
Italy |
UNI 4544 |
GS370-17 |
GS400-12 |
GS500-7 |
GS600-2 |
GS700-2 |
GS800-2 |
— |
France |
NF A32-201 |
FGS370-17 |
FGS400-12 |
FGS500-7 |
FGS600-2 |
FGS700-2 |
FGS800-2 |
— |
UK |
BS 2789 |
400/17 |
420/12 |
500/7 |
600/7 |
700/2 |
800/2 |
900/2 |
India |
IS 1865 |
SG370/17 |
SG400/12 |
SG500/7 |
SG600/3 |
SG700/2 |
SG800/2 |
— |
Spain |
UNF |
FGE38-17 |
FGE42-12 |
FGE50-7 |
FGE60-2 |
FGE70-2 |
FGE80-2 |
— |
Belgium |
NBN 830-02 |
FNG38-17 |
FNG42-12 |
FNG50-7 |
FNG60-2 |
FNG70-2 |
FNG80-2 |
— |
Australia |
AS 1831 |
300-17 |
— |
500-7 |
600-3 |
700-2 |
800-2 |
— |
400-12 |
Sweden |
SS 14 07 |
0717-02 |
— |
0727-02 |
0732-03 |
0737-01 |
0864-03 |
— |
Norway |
NS11 301 |
SJK-400.3 |
— |
SJK-500 |
SJK-600 |
SJK-700 |
SJK-800 |
|
SJK-400 |
Production Process:
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting,
Supplier:
Ductile Iron Foundry in China, S.G. Iron Casting Manufacturer, Iron Foundry, China Foundry
Dandong Foundry is a professional China Foundry with over 50 years experience in producing Iron Castings, Steel Castings and Machining Works. Our main production materials are gray cast iron, ductile cast iron, carbon steel and alloy steel.
We are ISO 9001 Quality Certified. Annual output 8000 tons of metal castings, and 70% have been exported to USA, UK, Australia, Germany and Italy etc.
