Product Name:

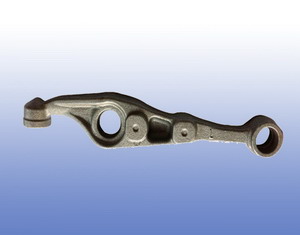

Ductile Iron Steering Knuckle, S.G. Iron Knuckle, Slewing
Journal Casting, Cast Iron Auto Parts, Iron Casting Supplier in
China
Application on:
In automotive suspension, a steering knuckle is that part which
contains the wheel hub or spindle, and attaches to the
suspension components. It is variously called a steering
knuckle, spindle, upright or hub, as well.
The wheel and tire assembly attach to the hub or spindle of the
knuckle where the tire/wheel rotates while being held in a
stable plane of motion by the knuckle/suspension assembly.
Material Grades:
|
Country |
Standard |
Equivalent Grades of Ductile iron (SG Iron, Nodular
Graphite Iron) |
|
ISO |
ISO 1083 |
400-15 |
450-10 |
500-7 |
600-3 |
700-2 |
800-2 |
900-2 |
|
400-18 |
|
China |
GB 1348 |
QT400-18 |
QT450-10 |
QT500-7 |
QT600-3 |
QT700-2 |
QT800-2 |
QT900-2 |
|
USA |
ASTM A536 |
60-40-18 |
60-42-10 |
70-50-05 |
80-55-06 |
100-70-03 |
120-90-02 |
— |
|
65-45-12 |
80-60-03 |
|
Germany |
DIN 1693 |
GGG40 |
— |
GGG50 |
GGG60 |
GGG70 |
GGG80 |
— |
|
Austria |
|
European |
EN 1563 |
EN-GJS-400-15 |
EN-GJS-450-10 |
EN-GJS-500-7 |
EN-GJS-600-3 |
EN-GJS-700-2 |
EN-GJS-800-2 |
EN-GJS-900-2 |
|
EN-GJS-400-18 |
|
Japan |
JIS G5502 |
FCD400 |
FCD450 |
FCD500 |
FCD600 |
FCD700 |
FCD800 |
— |
|
Italy |
UNI 4544 |
GS370-17 |
GS400-12 |
GS500-7 |
GS600-2 |
GS700-2 |
GS800-2 |
— |
|
France |
NF A32-201 |
FGS370-17 |
FGS400-12 |
FGS500-7 |
FGS600-2 |
FGS700-2 |
FGS800-2 |
— |
|
UK |
BS 2789 |
400/17 |
420/12 |
500/7 |
600/7 |
700/2 |
800/2 |
900/2 |
|
India |
IS 1865 |
SG370/17 |
SG400/12 |
SG500/7 |
SG600/3 |
SG700/2 |
SG800/2 |
— |
|
Spain |
UNF |
FGE38-17 |
FGE42-12 |
FGE50-7 |
FGE60-2 |
FGE70-2 |
FGE80-2 |
— |
|
Belgium |
NBN 830-02 |
FNG38-17 |
FNG42-12 |
FNG50-7 |
FNG60-2 |
FNG70-2 |
FNG80-2 |
— |
|
Australia |
AS 1831 |
300-17 |
— |
500-7 |
600-3 |
700-2 |
800-2 |
— |
|
400-12 |
|
Sweden |
SS 14 07 |
0717-02 |
— |
0727-02 |
0732-03 |
0737-01 |
0864-03 |
— |
|
Norway |
NS11 301 |
SJK-400.3 |
— |
SJK-500 |
SJK-600 |
SJK-700 |
SJK-800 |
|
|
SJK-400 |
Production Process:
Sand Casting, Automatic Molding, Machine Molding, Shell Molding,
Green Sand Casting, Resin Sand Casting,
Supplier:
Ductile Iron Foundry in China, S.G. Iron Casting Manufacturer,
Iron Foundry, China Foundry
Our main products include Gray Iron, Ductile Iron and Cast Steel
casting parts for tractors, trucks, agricultural, construction,
mining machinery, stove and boilers, pump, valve, tugboat,
electrical facilities, cranes, machines, cars, pipe fittings,
docks, cooking ware, excavators etc.
Dandong Foundry is also producing various seeding knife points,
fertilizer boots, plough tine, press wheel, cast seeding
carriers, heavy duty knife points, wing seeder knife points,
seeding system attachment, seeding tubes for our our clients in
AU.
|
