Gray Iron Automotive Castings



Gray iron castings have been widely used for automotive industries, such as brake drums and clutch plates.

Automotive brake drums and clutch plates for heavy-duty service are considered as special cases. Typical chemical analyses and mechanical properties are listed in Table 1 and Table 2.

Heavy-duty irons for such service require high carbon contents for resistance to thermal shock and to minimize heat checking. To maintain strength levels specified for Grades G3500b and G3500c normally requires alloying due to their high carbon contents.

Table 1  Usual Composition of Brake Drums and Clutch Plates for Special Service

Chemical Composition, %

Grade
G2500a

Grade
G3500b

Grade
G3500c

Carbon, total (mandatory)

3.40 min

3.40 min

3.50 min

Silicon (as required)

1.60–2.10

1.30–1.80

1.30–1.80

Manganese (as required)

0.60–0.90

0.60–0.90

0.60–0.90

Sulfur, max

0.12

0.12

0.12

Phosphorus, max

0.15

0.15

0.15

Alloys

as required

as required

as required


Table 2  Typical Mechanical Properties

Mechanical Properties

Grade
G2500a

Grade
G3500b

Grade
G3500c

Tensile strength, min:
Psi
kgf/mm


25 000
17.5


35 000
24.5


35 000
24.5

Transverse strength, min:
lb
kg


2000
910


2400
1090


2400
1090

Deflection, min:
in.
mm


0.17
4.3


0.24
6.1


0.24
6.1

Hardness, HB

170–229

207–255

207–255

Brinell indention diameter, mm

4.6–4.0

4.2–3.8

4.2–3.8

See Table 3 for microstructure requirements.

Table 3  Brake Drums and Clutch Plates for Special Service

Grade

Carbon min, %A

Casting Hardness

Microstructure

Graphite

Matrix

G2500a

3.40

HB 170-229

Type VII, size 2–4

lamellar pearlite

4.6–4.0 BID or as agreed

A distribution

ferrite if present not to exceed 15%

G3500b

3.40B

HB 207-255

Type VII, size 3–5

lamellar pearlite

4.2–3.8 BID or as agreed

A distribution

ferrite or carbide if present not to exceed 5%

G3500c

3.50B

HB 207-255

Type VII, size 3–5

lamellar pearlite

4.2–3.8 BID or as agreed

A distribution

ferrite or carbide, if present not to exceed 5%

A The chemical analysis for total carbon shall be made on chilled pencil-type specimens or from thin wafers approximately 1/32 in. (0.8 mm) thick cut from test coupons. Drillings are not reliable because of the probable loss of graphite.
B Grades G 3500b and G 3500c normally require alloying to obtain the specified hardness at the high carbon levels specified.

Following are suggested grades for brake drums and clutch plates according to types of service:

Grade Suggested Usage
G2500a Brake drums and clutch plates for moderate service requirements, where high carbon iron is desired to minimize heat checking.
G3500b Brake drums and clutch plates for heavy-duty service where both resistance to heat checking and higher strength are definite requirements.
G3500c Extra-heavy-duty service brake drums.

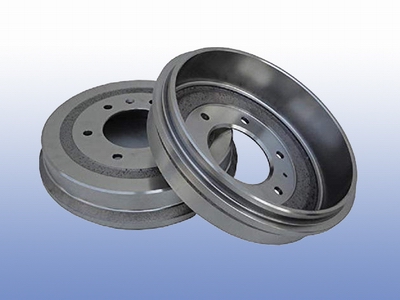

automotive brake drums

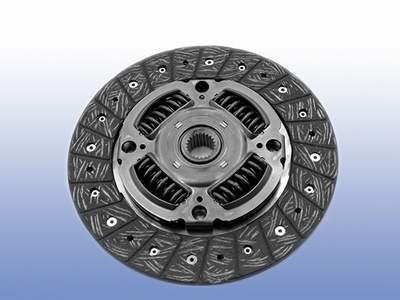

automotive clutch plates


This article is from our Dandong Foundry's Gray Iron Automotive Castings
