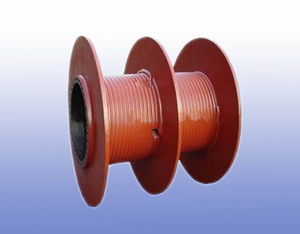

Resin Sand Casting Ductile Cast Iron Coiling Block



Product Name:

Ductile Iron Coiling Block, S.G. Iron Reel, Resin Sand Casting, Cast Iron Winding Drum, Iron Casting for Barrel

There are six steps in sand casting process:
1.Place a pattern in sand to create a mold.
2.Incorporate the pattern and sand in a gating system.
3.Remove the pattern.
4.Fill the mold cavity with molten metal.
5.Allow the metal to cool.
6.Break away the sand mold and remove the casting.

Material Grades:
Ductile Cast Iron, Nodular Cast Iron, Spheroidal Graphite Iron, Spherulitic Graphite Cast Iron, SG Iron



Country

Standard

Equivalent Grades of Ductile iron (SG Iron, Nodular Graphite Iron)

ISO

ISO 1083

400-15

450-10

500-7

600-3

700-2

800-2

900-2

400-18

China

GB 1348

QT400-18

QT450-10

QT500-7

QT600-3

QT700-2

QT800-2

QT900-2

USA

ASTM A536

60-40-18

60-42-10

70-50-05

80-55-06

100-70-03

120-90-02

65-45-12

80-60-03

Germany

DIN 1693

GGG40

GGG50

GGG60

GGG70

GGG80

Austria

European

EN 1563

EN-GJS-400-15

EN-GJS-450-10

EN-GJS-500-7

EN-GJS-600-3

EN-GJS-700-2

EN-GJS-800-2

EN-GJS-900-2

EN-GJS-400-18

Japan

JIS G5502

FCD400

FCD450

FCD500

FCD600

FCD700

FCD800

Italy

UNI 4544

GS370-17

GS400-12

GS500-7

GS600-2

GS700-2

GS800-2

France

NF A32-201

FGS370-17

FGS400-12

FGS500-7

FGS600-2

FGS700-2

FGS800-2

UK

BS 2789

400/17

420/12

500/7

600/7

700/2

800/2

900/2

India

IS 1865

SG370/17

SG400/12

SG500/7

SG600/3

SG700/2

SG800/2

Spain

UNF

FGE38-17

FGE42-12

FGE50-7

FGE60-2

FGE70-2

FGE80-2

Belgium

NBN 830-02

FNG38-17

FNG42-12

FNG50-7

FNG60-2

FNG70-2

FNG80-2

Australia

AS 1831

300-17

500-7

600-3

700-2

800-2

400-12

Sweden

SS 14 07

0717-02

0727-02

0732-03

0737-01

0864-03

Norway

NS11 301

SJK-400.3

SJK-500

SJK-600

SJK-700

SJK-800



SJK-400

Production Process:
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting,

Supplier:
Ductile Iron Foundry in China, S.G. Iron Casting Manufacturer, Iron Foundry, China Foundry

Dandong Foundry is producing cast iron and cast steel castings by various sand casting and precision casting processes, including Automatic Molding Line, Resin Sand Molding, Shell Molding, Manual Green Sand Cast Molding, Shell Molding, Lost Wax Investment Casting Process by water glass and silica sol materials.

We have complete quality inspection devices for Mechanical Testing and Chemical Analysis, including tensile strength, hardness, metallographic inspection, hardness, spectrometer, ultrasonic testing. ISO 9001 Certified. We can issue quality reports for all inspections.
